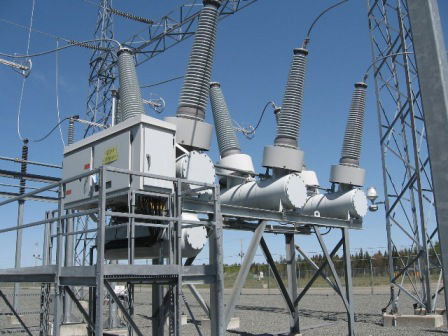

ONE (1) 2000 AMP GE/HITACHI SF6 CIRCUIT BREAKER
ONE (1) 2000 AMP GE/HITACHI SF6 CIRCUIT BREAKER TYPE HVB 242 40000 242 KV MAXIMUM 10 K RATED VOLTAGE RANGE 950 KV BIL 3 PHASE 60 HERTZ 40 KA SHORT CIRCUIT 3 CYCLES INTERRUPTING 75 PSIG NORMAL 64 PSIG MINIMUM 220 LBS. GAS 21,000 LBS. MPR-3 PNEUMATIC OPERATING MECHANISM WIRING DIAGRAM H24201314 125 VDC CLOSE & TRIP AMBIENT DESIGN TEMP. - +40 TO -50 DEG. C HEATING RATING 838 KW, 208 VAC 6 CT'S EXTRA CT'S AVAILABLE AT ADDITIONAL COST USED / GOOD CONDITION
- Brand: General Electric/Hitachi
- SKU: CBK-06-5006
Learn More
ONE (1) 2000 AMP GE/HITACHI SF6 CIRCUIT BREAKER
TYPE HVB 242 40000
242 KV MAXIMUM
10 K RATED VOLTAGE RANGE
950 KV BIL
3 PHASE
60 HERTZ
40 KA SHORT CIRCUIT
3 CYCLES INTERRUPTING
75 PSIG NORMAL
64 PSIG MINIMUM
220 LBS. GAS
21,000 LBS.
MPR-3 PNEUMATIC OPERATING MECHANISM
WIRING DIAGRAM H24201314
125 VDC CLOSE & TRIP
AMBIENT DESIGN TEMP. - +40 TO -50 DEG. C
HEATING RATING 838 KW, 208 VAC
6 CT'S
EXTRA CT'S AVAILABLE AT ADDITIONAL COST
USED / GOOD CONDITION
SPECIFICATIONS>>> CBK-06-5006~ ONE (1) 2000 AMP GE-HITACHI SF6 CIRCUIT BREAKER.pdf
