USED ELLIOTT (SQV10) 9401KW 60HZ. CONDENSING STEAM TURBINE GENERATOR SET

New Listing
New Listing
New Listing
New Listing
New Listing

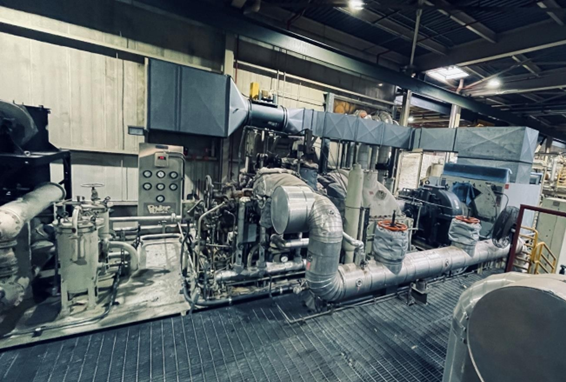

ONE (1) USED ELLIOTT (SQV10) 9401KW 60HZ. CONDENSING STEAM TURBINE GENERATOR SET decommissioned in 2020.

Learn More

Related products

Quick View

UNUSED 12400 KW 60HZ. SIEMENS CONDENSING STEAM TURBINE GENERATOR SET

Unused 12.4MW 60Hz. Condensing steam turbine, gear reducer skid complete Generator with terminal box and DECS 200 voltage regulator Lube oil system Condenser with air ejector Condensate extraction pump with motor Turbine control panel Generator control panel Battery and charger 24V Call for Pricing

Quick View

NEW 30MW CONDENSING STEAM TURBINE GENERATOR SET

STEAM TURBINE: Manufacturer: TGM WEG Energia Model CTE40 Type: Condensing Rating: 30,366, kw 60Hz. Inlet steam: 1500 psig/1000 °F Exhaust Steam: 2.8“ Hga Maximum inlet steam flow: 275,578 Lbs/hr Steam rate: 9.08 lbs/kwh Extraction steam : 4 uncontrolled and 1 controlled extraction 40 psig (0 to 255,00 ls/hr) Inlet steam size: 10” extraction steam 24” Speed: 6000 rpm Rotation: CW from governor end HISTORY: Year manufactured: 2021/2022 stored in warehouse original factory shipping crates

Quick View

ONE (1) 2500KW DRESSER-RAND CONDENSING STEAM TURBINE GEN SET

Consisting of Dresser-Rand frame S-6, 2500KW Single Valve Multi Stage Condensing Steam Turbine, 6000 RPM, Inlet Steam 200 to 300 psig, 500 to 600 Deg. F, Exhaust 2” HGA, CW rotation looking from governor end, 1 Curtis 6 rateau stages, Woodward 505 Governor. 6” class 600 Inlet size, 30” class 125 Up Exhaust. Hand valve for part load operation. Lube oil system, gland steam condenser. GENERATOR: Ideal 2941 KVA, 2500 KW, 4160V, 3 Phase, 60HZ. Air cooled with brushless exciter. 1800RPM CONDENSER: Graham surface condenser, 3271 sq. ft., 43,000 lbs./hr. steam condensed.
