ONE (1) GE DUAL FUEL REFURBISHED TM2500+GEN6™ 50/60Hz. MOBILE GAS TURBINE GENEATOR SET
CTG is offering one (1) dual fuel dual frequency refurbished GE mobile power generation unit mounted on a two-trailer assembly, comprised of a TM2500+ Gen6™ generator set that can be transported via land, sea, and air to some of the most remote places in the world. Their mobile nature means that they can be swiftly deployed to other sites within days when they are no longer required at the original site.
- Brand: General Electric
- SKU: CTG-GTDF-M1001
Learn More
Download Technical Brochure>>>> Gen6_7_Brochure_Aero Gas Turbines_TM2500.pdf
<<<<<Watch Video Presentation>>>>>
Performance you can count on for mobile Power. The GE TM2500+ total solution and Services support a TM2500+ fast-power solution project may include:
• Installation
• Commissioning
• Project management
• Decommissioning
• Consumable parts kit (filters/ lubricants for operation needs)
In addition, CTG offers many services to support the ongoing operation and performance of the unit including, but not limited to the following:
• On-call technical advisory services
• Maintenance planning and training
• On-site hot section, combustor, and other modular exchanges
• Depot Repair Services for scheduled overhauls and unscheduled repairs
• Performance testing

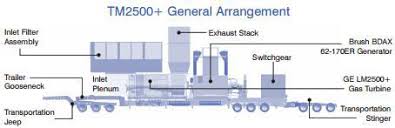

Includes:
Inlet Filter Assembly
Trailer Gooseneck
Transportation
Jeep
Inlet Plenum
GE LM2500+ Gas Turbine
Brush BDAX 62-170ER Generator
Exhaust Stack Hydraulic
Starter
Fuel/Water Pumps
Lube Oil Coolers
Turbine Enclosure
Fire Suppression
Control Room & Battery Room
Switchgear
Transportation
Stinger
| Model | Water Injection (NOx = 25 ppmvd @15% O2) | Output (MW) | Heat Rate (Btu/kWh) | Heat Rate (kJ/kWh) | Efficiency (%) | Pressure Ratio | Power Turbine Speed (RPM) | Exhaust Flow (lb/sec) | Exhaust Flow (kg/sec) | Exhaust Temp (F) | Exhaust Temp (C) |
60 HZ
| TM2500+ | None | 30.688 | 8830 | 9316 | 39 | 22.5 | 3600 | 192.2 | 87.2 | 959.1 | 515 |
| TM2500+ | Yes | 30.988 | 9285 | 9796 | 37 | 22.8 | 3600 | 196.6 | 89.2 | 906.0 | 485.6 |
50 HZ
| TM2500+ | None | 26.190 | 9246 | 9755 | 37 | 21.2 | 3000 | 184.5 | 83.7 | 925.0 | 496.1 |
TM2500+ Yes 26.190 9705 10239 35 21.3 3000 187.2 84.9 879.0 470.6
*The performance data shown above is at standard ISO (International Organization for Standardization) conditions. The ISO has defined the following standard conditions for comparing gas turbine
engines Ambient air: 59°F/15°C, 60% RH; Barometric pressure (14.696 psia / 101.4 kPa); Sea level altitude. 60 Hz based on a Brush air-cooled generator w/brushless excitation @ 0.90 PF; 59°F/15°C cooling air; 13.8 kV (50 Hz @ 11.5 kV)
